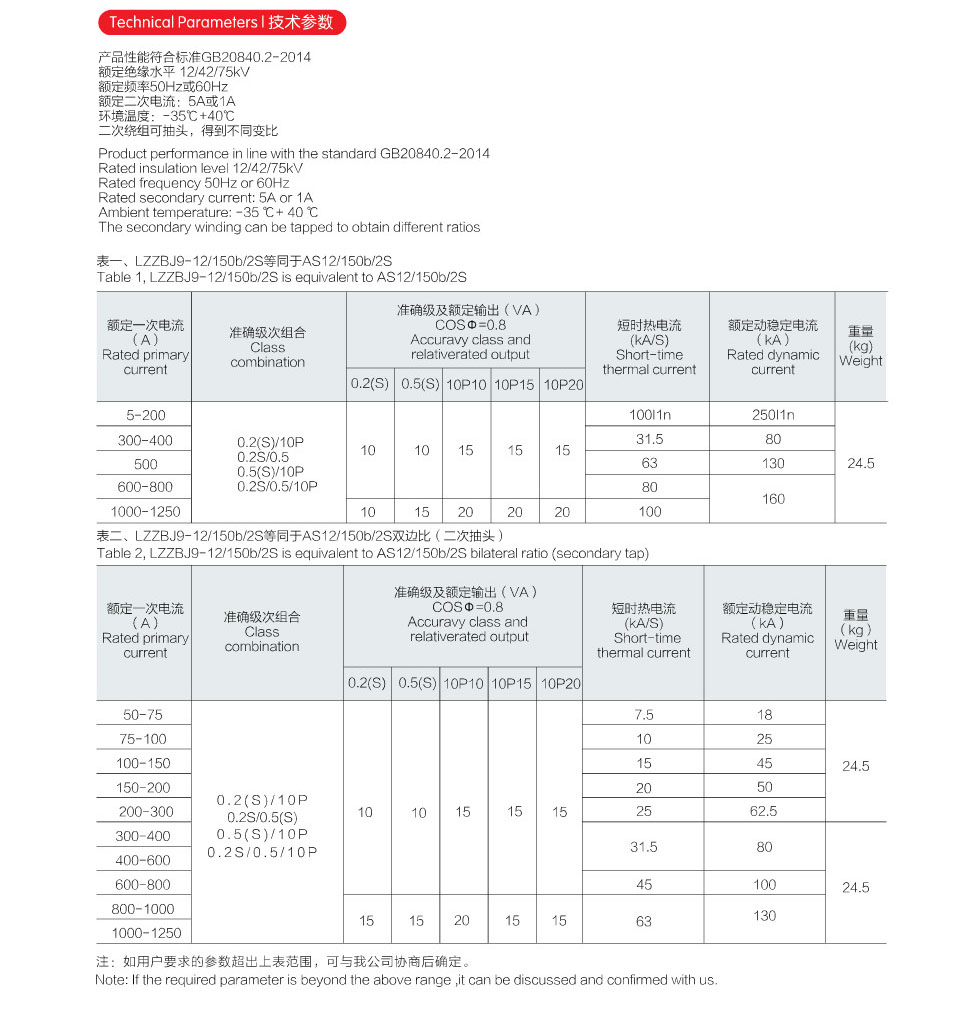

一、技術參數
產品性能符合標準GB20840.2-2014
額定絕緣水平12/42/75kV
額定頻率50Hz60Hz
額定二次電流:5A或1A
環境溫度:-35℃+40℃
二次繞組可抽頭,得到不同變比
Product performance in line with the standard GB20840.2-2014
Rated insulation level 12/42/75kV
Rated frequency 50Hz or 60Hz
Rated secondary current: 5A or 1A
Ambient temperature: -35 ℃+ 40℃
The secondary winding can be tapped to obtain different ratios
表一、LZZBJ9-12/150b/2S等同于AS12/150b/2s
Table 1,LZZBJ9-12/150b/2S is equivalent to AS12/150b/2S
|
額定一次電流 (A）
Rated primary current
|
準確級次組合
Class combination
|
準確級及額定輸出(VA)
COSΦ=0.8 Accuravy class and relativerated output
|
短時熱電流 (kA/S)
Short-time thermal current
|
額定動穩定電流 (kA)
Rated dynamic current
|
重量
weight
|
|
0.2(S)
|
0.5(S)
|
10P10
|
10P15
|
10P20
|
|
5-200
|
0.2(S）/10P 0.2(S）/5 0.5(S）/10P 0.2S/0.5/10P
|
10
|
10
|
15
|
15
|
15
|
100l1n
|
250l1n
|
24.5
|
|
300-400
|
31.5
|
80
|
|
500
|
63
|
130
|
|
600-800
|
80
|
160
|
|
1000-1250
|
10
|
15
|
20
|
20
|
20
|
100
|
表二、LZZBJ9-12/150b/2S等同于AS12/150b/2S雙邊比(二次抽頭）
Table 2,LZZBJ9-12/150b/2S is equivalent to AS12/150b/2S bilateral ratio (secondary tap)
|
額定一次電流 (A）
Rated primary current
|
準確級次組合
Class combination
|
準確級及額定輸出(VA)
COSΦ=0.8 Accuravy class and relativerated output
|
短時熱電流 (kA/S)
Short-time thermal current
|
額定動穩定電流 (kA)
Rated dynamic current
|
重量
weight
|
|
0.2(S)
|
0.5(S)
|
10P10
|
10P15
|
10P20
|
|
50-75
|
0.2(S)/10P 0.2S/0.5(S) 0.5(S)/10P 0.2S/0.5/10P
|
10
|
10
|
15
|
15
|
15
|
7.5
|
18
|
24.5
|
|
75-100
|
10
|
25
|
|
100-150
|
15
|
45
|
|
150-200
|
20
|
50
|
|
200-300
|
25
|
62.5
|
|
300-400
|
31.5
|
80
|
24.5
|
|
400-600
|
|
600-800
|
45
|
100
|
|
800-1000
|
15
|
15
|
20
|
15
|
15
|
63
|
130
|
|
1000-1250
|
注:如用戶要求的參數超出上表范圍,可與我公司協商后確定。
Note: If the required parameter is beyond the above range ,it can be discussed and contimed with us.
